Foundation engineering in Aurora, Illinois, must address the region’s glacial till and silty clay soils, which exhibit moderate bearing capacity but significant frost-susceptibility. Local compliance with the Aurora Building Code (based on IBC 2018) mandates minimum footing depths of 42 inches to resist frost heave, while expansive clay lenses often require specialized subgrade preparation. For deep support needs, our pile foundation design service integrates geotechnical borings to bypass weak near-surface strata, ensuring load transfer to competent till or bedrock. Shallow systems benefit from our settlement analysis to mitigate differential movement in moisture-sensitive soils.
Typical Aurora projects demanding robust foundations include multi-story mixed-use structures along the Fox River corridor, where variable alluvial deposits complicate bearing uniformity, and industrial warehouses near the I-88 logistics hub that impose heavy column loads. These scenarios frequently pair deep foundation solutions with lateral load analysis for wind and seismic resilience, particularly in open-span designs. Our approach consistently aligns with IDOT geotechnical standards for long-term performance.
The unbonded length must extend past the failure wedge, and in Aurora's layered silts we verify that with site-specific friction angles, not textbook values.
Technical details of the service in Aurora Illinois
Local geotechnical conditions in Aurora Illinois
IBC Section 1810 requires load testing on all prestressed anchors. ASCE 7-22 Chapter 3 dictates the seismic earth pressure increments we must add in Aurora, where the design spectral acceleration Ss reaches about 0.15g. That may sound modest, but a 0.15g lateral kick on a 20-ft retained height adds thousands of pounds of tension per anchor. Corrosion is the other quiet threat. Road salt, deicing chemicals on Randall Road, and the naturally conductive soils near the Fox River accelerate metal loss. We specify Class I double-corrosion protection for permanent anchors in these environments. A bar with a continuous plastic sheath and epoxy coating costs more upfront, but it avoids a $150,000 wall remediation in year twelve. The city's stormwater management requirements also affect anchor layout: no drainage notch, no permit. We coordinate with the civil engineer to integrate weep holes and strip drains without compromising the anchor grid.
Our services
Our Aurora anchor design scope covers three distinct project types. Each follows a clear sequence from subsurface investigation to construction support.

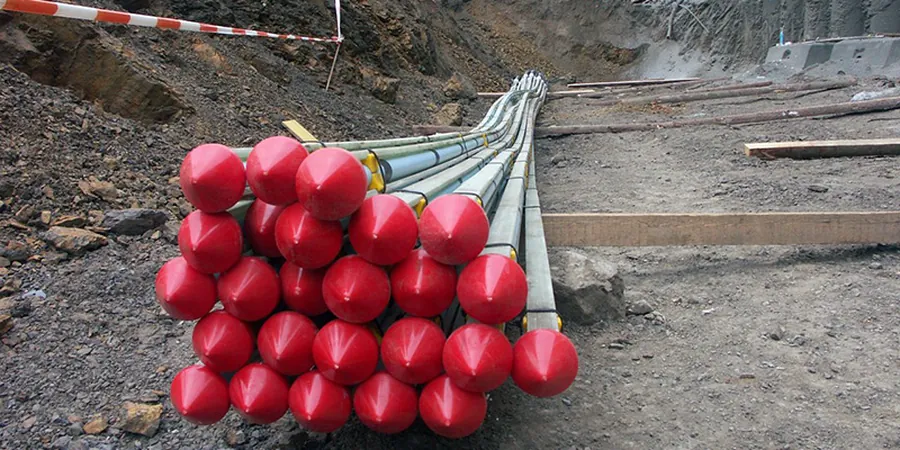

Tieback Design for Permanent Walls
Full design package for soldier pile and lagging walls restrained by active tiebacks. Includes bond length calculation, unbonded length verification, corrosion protection specification, and staged excavation sequence. We deliver signed calculations for City of Aurora permit submittal.
Soil Nail Wall Design for Temporary Cuts
Drill-and-grout passive nails for excavation support in glacial till and alluvium. We provide nail spacing, bar size, facing reinforcement, and drainage details. Suitable for 90-day to 18-month exposure periods on commercial site work.
Anchor Load Testing and Evaluation
On-site proof testing and performance testing per ASTM D3966 and PTI standards. We monitor creep, residual movement, and lock-off load. When an existing wall shows distress, we perform lift-off tests to diagnose tendon relaxation or bond failure.
Frequently asked questions
What does active/passive anchor design cost in Aurora?
For a typical Aurora project, engineering design fees range from US$920 for a straightforward soil nail wall with standard soil data, up to US$4,040 for a permanent tied-back system requiring corrosion protection, seismic analysis, and multiple test anchor programs. The fee depends on wall height, number of anchors, and whether existing borings are sufficient or new subsurface investigation is needed.
When do I need active tiebacks instead of passive soil nails?
Active tiebacks are required when you cannot tolerate lateral deflection. Think of a property line wall with an adjacent building 3 ft away on Galena Boulevard. Passive nails need soil movement to engage. Tiebacks are prestressed and locked off, so they apply immediate restraint. We also specify them for permanent walls over 15 ft in Aurora's soft silt zones.
What subsurface data do you need for anchor design?
At minimum, we need SPT N-values and soil classification per ASTM D2487 for the full retained height plus the bonded zone depth. For permanent anchors in Aurora's Fox River deposits, we strongly recommend consolidated-undrained triaxial tests to get the effective friction angle and undrained shear strength. If groundwater is within the excavation zone, we need a piezometer reading from the boring log.
